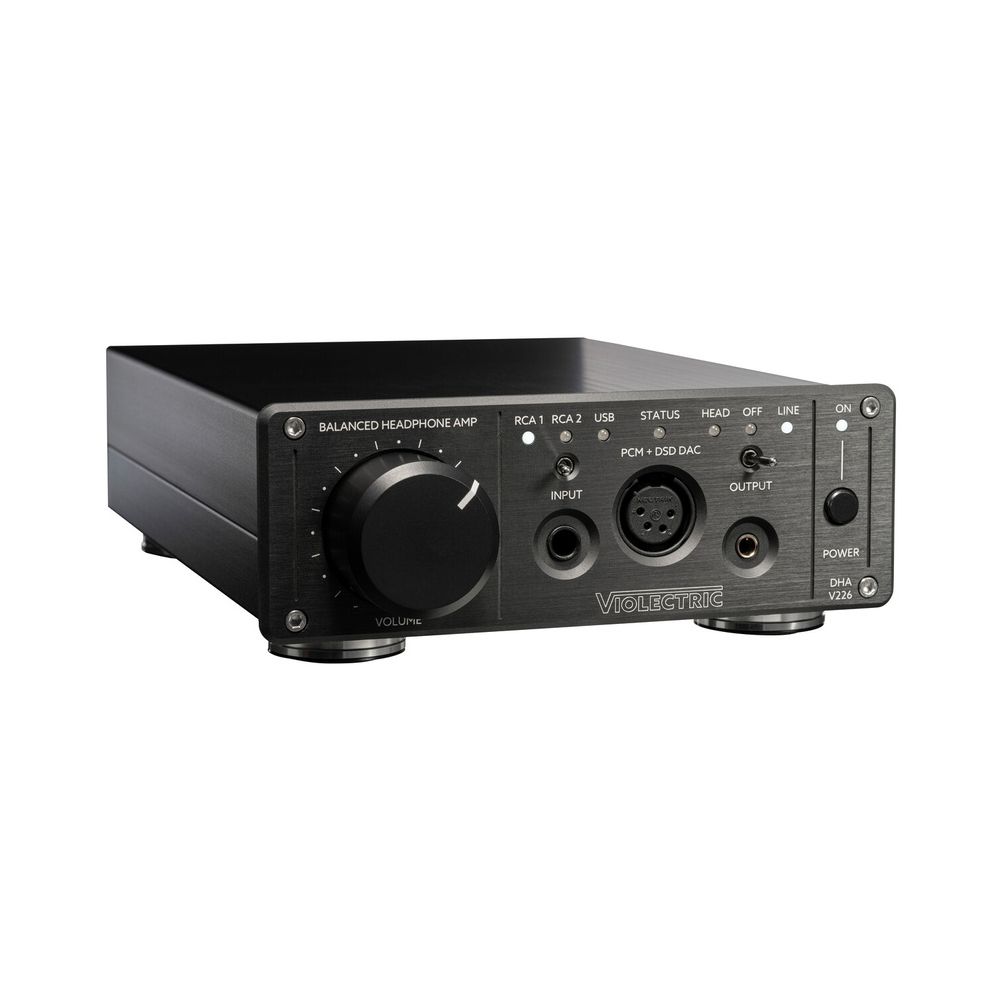

Violectric DHA V226
The Violectric DHA V226 is a headphone amplifier/DAC from Violectric.
Shipping
Shipping
Image 1 of 7
Delivery time on request
We order this product specially for you from the supplier. Lead time can run to several weeks — contact us for a current estimate. Once the item reaches us, we ship within 3–5 business days.
From the brand
desktop headphone amplifier and DAC, built by Lake People electronic GmbH in Konstanz, Germany. A Cirrus Logic CS43131 32-bit converter feeds a four-amplifier output stage running on a 50 V internal rail, driving balanced and unbalanced headphones over 4-pin XLR, 4.4 mm Pentaconn and 6.3 mm jack. A seven-step PRE-GAIN (-18 to +18 dB) matches the amplifier to headphones of differing sensitivity, and the RCA line output lets it double as a preamp. Unless stated otherwise, all figures are RMS unweighted, 20 Hz - 20 kHz, with PRE-GAIN at 0 dB.
Specifications
- Analog inputs
- 2 × RCA, unbalanced
- Digital inputs
- 1 × USB-C
- Max PCM
- 32 bit / 384 kHz
- Max DSD
- DSD64 - DSD256
- DAC chip
- Cirrus Logic CS43131, 32-bit
- Analog outputs
- 1 × RCA, unbalanced
- Headphone outputs
- 4-pin XLR balanced / 4.4 mm Pentaconn balanced / 6.3 mm jack unbalanced
- Output power
- 3500 mW into 100 Ω
- Output impedance
- 0.25 Ω unbalanced / 0.5 Ω balanced
- Gain
- Output stage +2 dB unbalanced / +8 dB balanced; PRE-GAIN 7-step: -18 / -12 / -6 / 0 / +6 / +12 / +18 dB
- Volume control
- ALPS RK27 potentiometer, 38 mm aluminium knob
- Frequency response
- 5 Hz - 250 kHz (-0.5 dB)
- Dynamic range
- > 131 dB (A-weighted)
- Output noise
- < -102 dBu (A-weighted)
- THD+N
- < -102 dB / < 0.0008 % (1 kHz, 1 W into 100 Ω)
- Channel separation
- -100 dB (1 kHz) / -95 dB (15 kHz)
